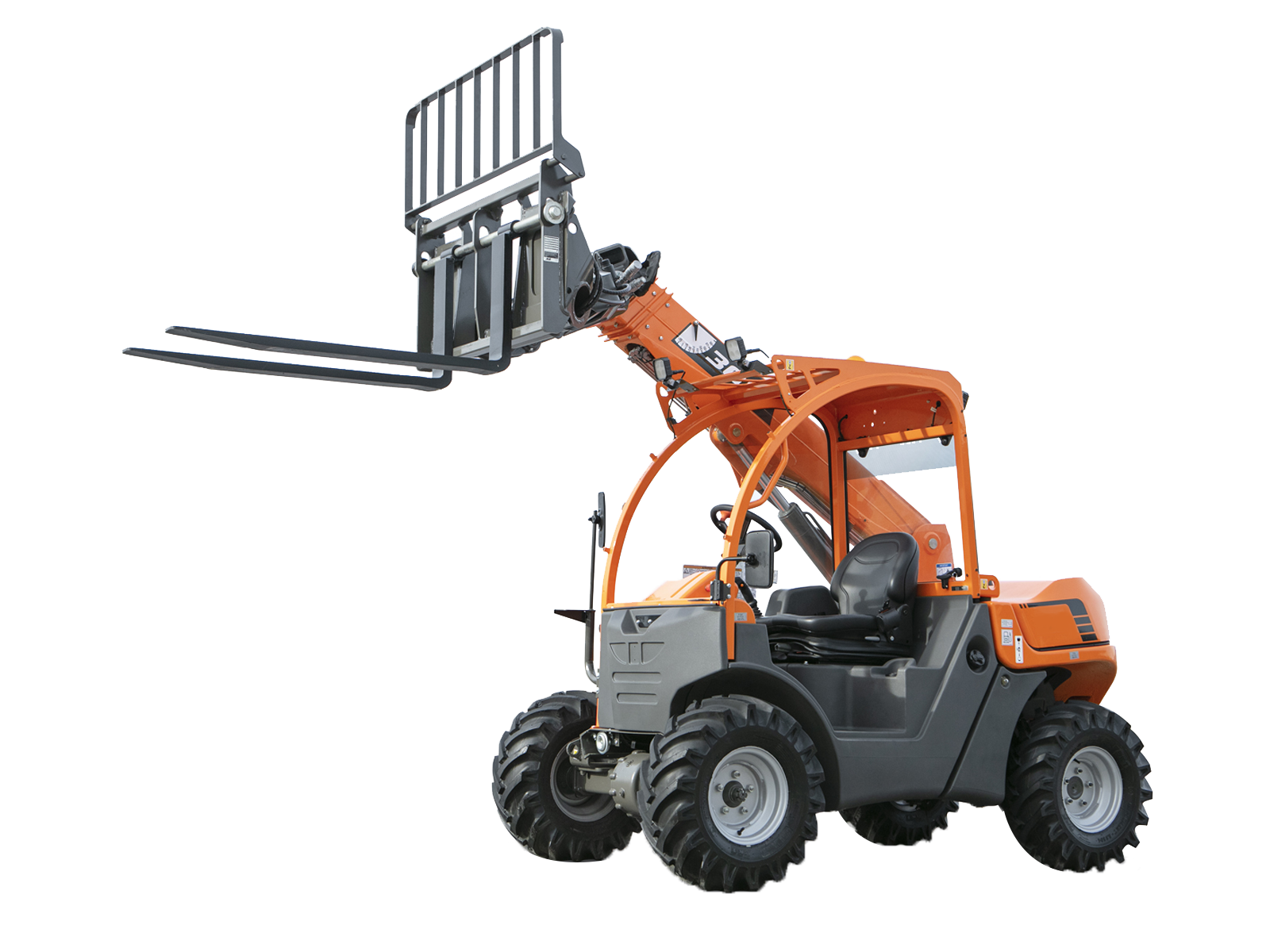

Work in Confined Environments: Ultra-compact and highly maneuverable design
Enhance Your Capabilities: Excellent reach into truck beds, trailers and over obstacles
Keep Your Surroundings Intact: Rear-wheel steering for less ground disturbance
Easily Move from Job to Job: Low weight for easy transportation with pick-up and trailer
Boost Operator Comfort: Oscillating rear axle provides a smoother ride for the operator and load
Increase Versatility: Optional hydraulic universal skid steer coupler for use with skid steer attachments
Maximum Lift Capacity: 2700 lb / 1224.70 kg
Maximum Lift Height: 13 ft 1 in. / 3.99 m
Maximum Reach: 7 ft 1 in. / 2.16 m
| Performance | |
| Drawbar Pull | 2623 lb / 1189.77 kg |
| Lift Capacity at Full Height | 1555 lb / 705.34 kg |
| Lift Capacity at Max Reach | 1200 lb / 544.31 kg |
| Load Center | 2 ft / 0.61 m |
| Maximum Lift Capacity | 2700 lb / 1224.70 kg |
| Maximum Lift Height | 13 ft 1 in. / 3.99 m |
| Maximum Reach | 7 ft 1 in. / 2.16 m |
| Outriggers or Stabilizers | No |
| Outside Turning Radius | 9 ft 9 in. / 2.97 m |
| Speed - Maximum Lift | 10.9 sec. |
| Speed - Maximum Lower | 7.7 sec. |
| Speed - Maximum Telescope In | 4.5 sec. |
| Speed - Maximum Telescope Out | 7.5 sec. |
| Speed - Maximum Travel | 10.5 mph / 16.90 km/h |
| Dimensional Data | |
| Ground Clearance | 10 in. / 0.25 m |
| Machine Height | 6 ft 7 in. / 2.01 m |
| Machine Length | 8 ft 9 in. / 2.67 m |
| Machine Width | 4 ft 7 in. / 1.4 m |
| Tire Size | 11 / 65 x 12 Pneumatic Ag Tread |
| Wheelbase | 5 ft 7 in. / 1.7 m |
