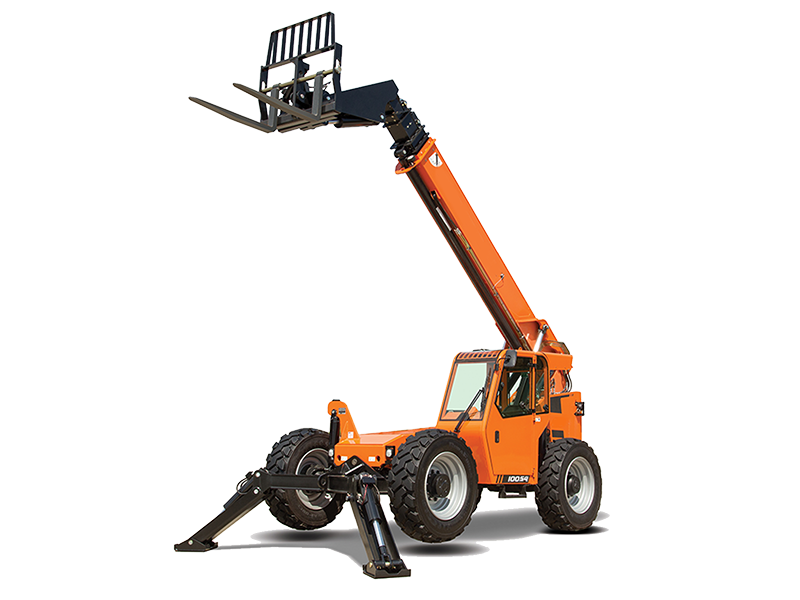

Single joystick and integrated arm rest for reduced operator fatigue.
Optional air conditioning for enhanced operator comfort.
Stabil-Trak rear axle stabilization system for increased operator confidence when placing a load.
Optional 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations.
Standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware.
Maximum Lift Capacity: 10000 lb / 4535.92 kg
Outriggers Up Max Lift Height: 53 ft 2 in. / 16.21 m
Maximum Lift Height: 53 ft 2 in. / 16.21 m
Maximum Reach: 38 ft 9 in. / 11.81 m
| Performance | |
| Drawbar Pull | 24500 lb / 11113.01 kg |
| Frame Leveling | 10 Degrees |
| Outriggers Up Lift Capacity Full Height | 4000 lb / 1814.37 kg |
| Outriggers Up Lift Capacity Full Reach | 1400 lb / 635.03 kg |
| Load Center | 2 ft / 0.61 m |
| Maximum Lift Capacity | 10000 lb / 4535.92 kg |
| Outriggers Up Max Lift Height | 53 ft 2 in. / 16.21 m |
| Outriggers Up Max Forward Reach | 38 ft 9 in. / 11.81 m |
| Lift Capacity at Full Height | 4000 lb / 1814.37 kg |
| Lift Capacity at Max Reach | 3000 lb / 1360.78 kg |
| Maximum Reach | 38 ft 9 in. / 11.81 m |
| Maximum Lift Height | 53 ft 2 in. / 16.21 m |
| Outriggers or Stabilizers | Yes |
| Outside Turning Radius | 13 ft 9 in. / 4.19 m |
| Speed - Maximum Lift | 16.4 sec. |
| Speed - Maximum Lower | 14.7 sec. |
| Speed - Maximum Telescope In | 15.9 sec. |
| Speed - Maximum Telescope Out | 17.6 sec. |
| Speed - Maximum Travel | 20 mph / 32.19 km/h |
| Dimensional Data | |
| Ground Clearance | 1 ft 6 in. / 0.46 m |
| Machine Height | 8 ft 4 in. / 2.54 m |
| Machine Length | 21 ft / 6.4 m |
| Machine Width | 8 ft 6 in. / 2.59 m |
| Tire Size | 400/75-28 |
| Wheelbase | 10 ft / 3.04 m |
