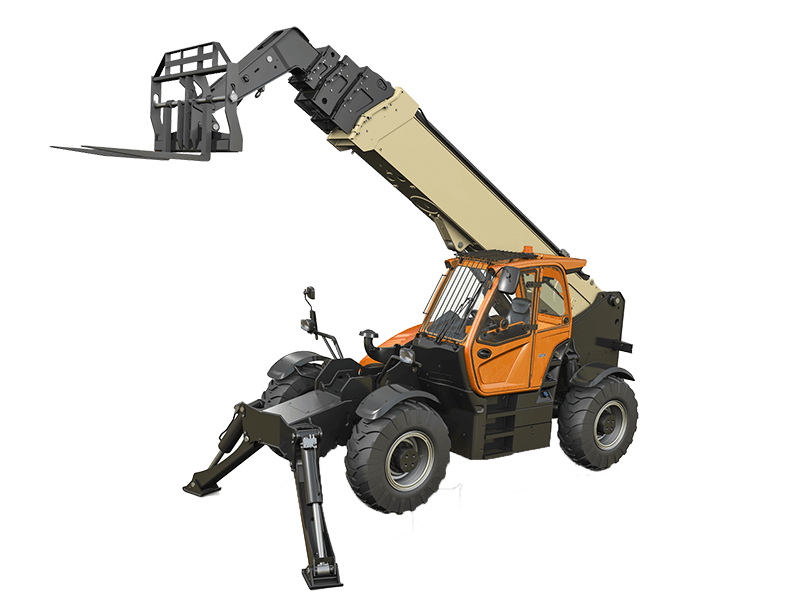

Lower Project Costs: Eight-story lift height reduces or eliminates the need for costly cranes
Increase Productivity: 60 ft of forward reach minimizes material rehandling
Experience Precision Placement: 30 ft of up-and-over reach allows for more precise load placement
Use Enhanced Technology: Right side electronic mirror with dual cameras allows you to see more
Standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware
Maximum Lift Capacity: 10000 lb / 4535.92 kg
Outriggers Up Max Lift Height: 75 ft / 22.86 m
| Performance | |
| Drawbar Pull | 22500 lb / 10205.83 kg |
| Frame Leveling | 8 Degrees |
| Outriggers Up Lift Capacity Full Height | 2500 lb / 1133.98 kg |
| Outriggers Up Lift Capacity Full Reach | 500 lb / 226.80 kg |
| Maximum Lift Capacity | 10000 lb / 4535.92 kg |
| Outriggers Up Max Lift Height | 75 ft / 22.86 m |
| Outriggers Up Max Forward Reach | 60 ft / 18.29 m |
| Lift Capacity at Full Height | 6000 lb / 2721.55 kg |
| Lift Capacity at Max Reach | 2100 lb / 952.54 kg |
| Outriggers or Stabilizers | Yes |
| Outside Turning Radius | 13 ft 4 in. / 4.06 m |
| Speed - Maximum Lift | 26 sec. |
| Speed - Maximum Lower | 22 sec. |
| Speed - Maximum Telescope In | 22 sec. |
| Speed - Maximum Telescope Out | 30 sec. |
| Dimensional Data | |
| Ground Clearance | 1 ft 5 in. / 0.43 m |
| Machine Height | 10 ft / 3.05 m |
| Machine Length | 24 ft 1 in. / 7.34 m |
| Machine Width | 8 ft 2 in. / 2.49 m |
| Tire Size | 17.5-25 SGG |
| Wheelbase | 11 ft 10 in. / 3.61 m |
| Speed - Maximum Travel | 17 mph / 27.36 km/h |
