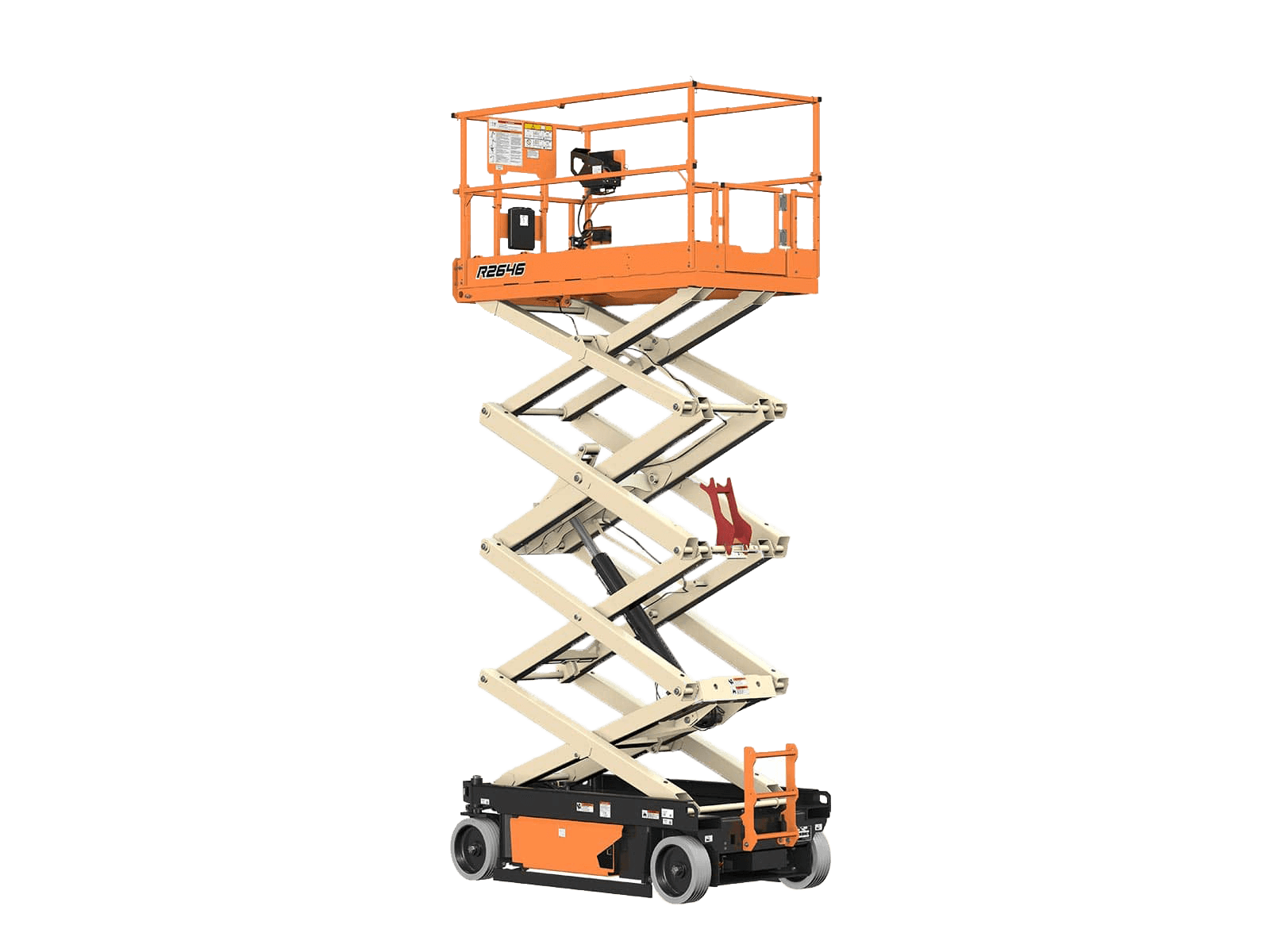

The R series from JLG is designed to be more reliable and easier to service.
Maximize Productivity: Class-leading 1,200-lb capacity, indoors and outdoors.
Tackle Demanding Terrain: Active pothole protection provides increased ground clearance.
Meet the Highest Standards: Complies with A92.20 ANSI regulations.
Standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware.
Platform Height: 26 ft / 7.92 m
Machine Width: 3 ft 10 in. / 1.17 m
Working Height: 32 ft / 9.75 m
| General | |
| Brakes | Electric, Friction |
| Capacity - Hydraulic Reservoir | 4 gal. / 15.14 L |
| Hydraulic Pump | Fixed Displacement Gear |
| Machine Weight | 5267 lb / 2389.07 kg |
| Maximum Ground Bearing Pressure | 122 psi / 8.54 Kg/cm2 |
| Performance | |
| Drive Speed - Platform Elevated | 0.5 mph / 0.80 km/h |
| Drive Speed - Platform Lowered | 3 mph / 4.83 km/h |
| Gradeability | 25 % |
| Lift Time | 54 sec. |
| Lower Time | 37 sec. |
| Maximum Drive Height | 26 ft / 7.92 m |
| Platform Capacity - Extension | 265 lb / 120.20 kg |
| Platform Capacity - Unrestricted | 1200 lb / 544.31 kg |
| Turning Radius - Inside | 0 ft / 0 m |
| Turning Radius - Outside | 7 ft 4 in. / 2.24 m |
| Dimensional Data | |
| Ground Clearance | 4 in. / 0.1 m |
| Machine Height | 7 ft 6 in. / 2.28 m |
| Machine Height - Rails Folded | 6 ft / 1.82 m |
| Machine Length | 7 ft 10 in. / 2.4 m |
| Machine Width | 3 ft 10 in. / 1.17 m |
| Platform Extension Length | 3 ft / 0.91 m |
| Platform Height - Lowered | 3 ft 9 in. / 1.14 m |
| Platform Railing Height | 3 ft 9 in. / 1.13 m |
| Tire Size | 16 x 5 in |
| Wheelbase | 6 ft 2 in. / 1.88 m |
| Reach Specifications | |
| Platform Height | 26 ft / 7.92 m |
| Working Height | 32 ft / 9.75 m |
