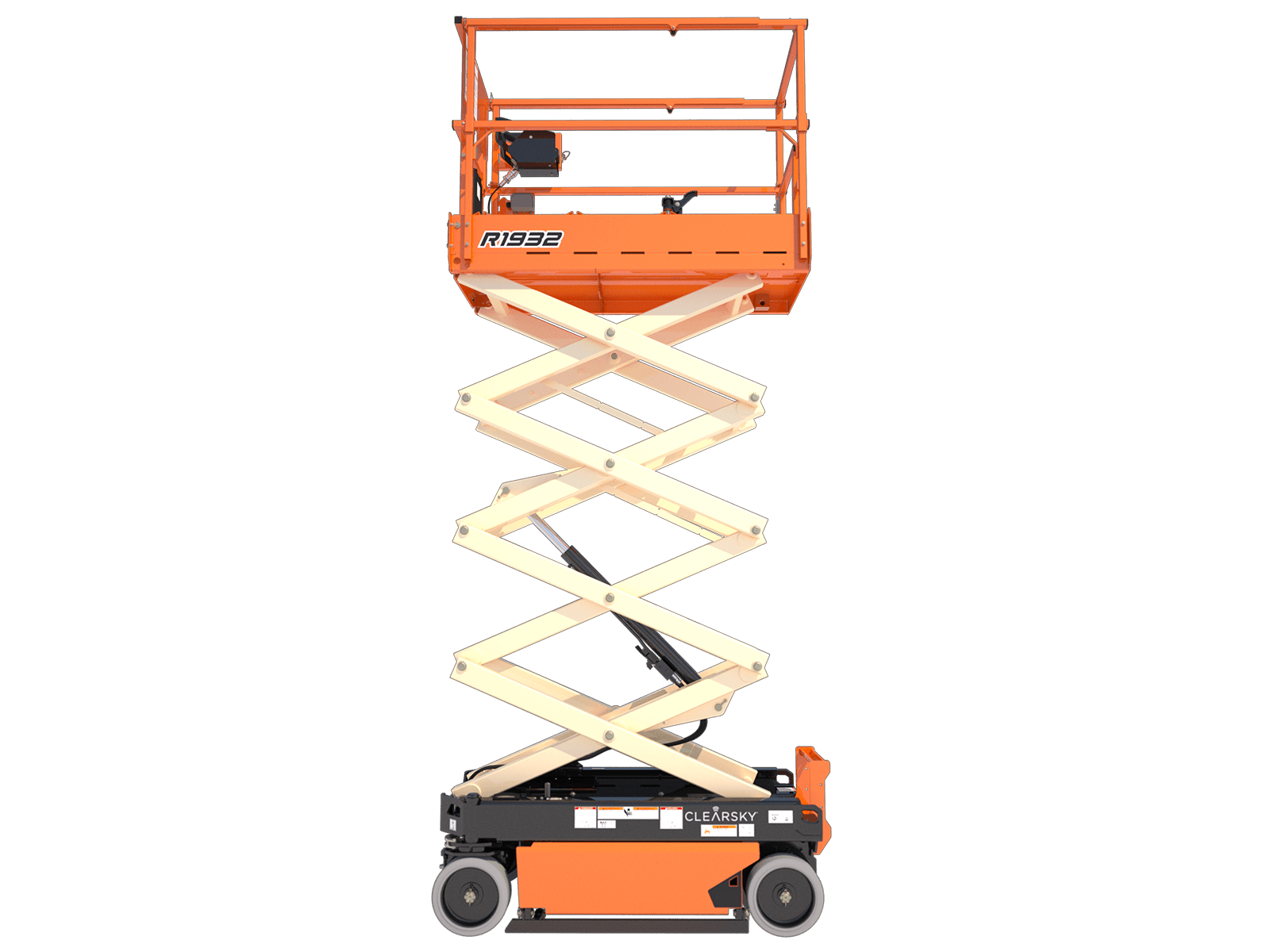

The R series from JLG is designed to be more reliable and easier to service
Available as an indoor-only option (R1932i) that is one of the lightest 19-ft scissor in its category
Active pothole protection provides increased ground clearance
Fewer parts and an improved battery charger for greater serviceability
All-steel platform and component doors and thicker rubber tires for added durability
Standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware
Platform Height: 19 ft / 5.79 m
Machine Width: 2 ft 8 in. / 0.81 m
Working Height: 25 ft / 7.62 m
| General | |
| Brakes | Multi-Disc Friction |
| Capacity - Hydraulic Reservoir | 4 gal. / 15.14 L |
| Hydraulic Pump | Fixed Displacement Gear |
| Machine Weight | 3450 lb / 1564.89 kg |
| Maximum Ground Bearing Pressure | 114 psi / 7.98 Kg/cm2 |
| Performance | |
| Drive Speed - Platform Elevated | 0.5 mph / 0.80 km/h |
| Drive Speed - Platform Lowered | 2 mph / 3.22 km/h |
| Drive System | 24V DC |
| Gradeability | 25 % |
| Lift Time | 27 sec. |
| Lower Time | 28 sec. |
| Maximum Drive Height | 19 ft / 5.79 m |
| Platform Capacity | 507 lb / 229.97 kg |
| Platform Capacity - Extension | 265 lb / 120.20 kg |
| Turning Radius - Inside | 0 in. / 0 m |
| Turning Radius - Outside | 5 ft 6 in. / 1.68 m |
| Dimensional Data | |
| Ground Clearance | 3 in. / 0.07 m |
| Machine Height | 6 ft 11 in. / 2.1 m |
| Machine Height - Rails Folded | 5 ft 4 in. / 1.63 m |
| Machine Length | 5 ft 9 in. / 1.74 m |
| Machine Width | 2 ft 8 in. / 0.81 m |
| Platform Extension Length | 3 ft / 0.91 m |
| Platform Height - Lowered | 3 ft 3 in. / 0.98 m |
| Platform Railing Height | 3 ft 7 in. / 1.1 m |
| Platform Size | 25.4in x 62.7in |
| Tire Size | 12.7 x 1.4 |
| Wheelbase | 4 ft 5 in. / 1.35 m |
| Reach Specifications | |
| Platform Height | 19 ft / 5.79 m |
| Working Height | 25 ft / 7.62 m |
